REGEXPREPLACE

The REGEXPREPLACE function performs regular expression pattern matching on the input string, replacing matches with the specified replacement string.

Input/Output

Number of Connections: Min: 1/Max:3

Input	Data Type	Description
Input1	String	The input string.
Input2	String	Sets the RegExp property. (optional)
Input3	String	Sets the Replace property. (optional)

Output	Data Type	Description
Output1	String	The modified string.

Property

Name	Property Type	Description
RegExp	string	The regular expression used to locate the data to be replaced.
Replace	string	The replacement string. The replacement string set by this property can use macros such as $1 or $2, as seen in the example below, that represent the regular expression portion of the RegExp that appear in brackets () in the order that they appear.
CaseInsensitive	choice	Defines whether the query distinguishes from upper and lower case characters. true - Does not distinguish between upper and lower case. false - Does distinguish between upper and lower case.
Global	choice	Specifies which matches are to be replaced. true - All matches are to be replaced. false - Only the first match is to be replaced.
EnableMetaCharacter	choice	If set to true, meta characters may be used in the Replace property. The following meta characters can be used. Meta Character Control Character \t TAB \r CR \n LF The "\" character can be used as an escape character. Use "\\" to output a single "\". A single "\" will result in a compile error. true - Use meta characters. false - Don't use meta characters.

Topic

• Please refer to a more detailed explanation of regular expression query language located at https://svn.apache.org/repos/asf/jakarta/oro/trunk/docs/api/org/apache/oro/text/regex/package-summary.html.

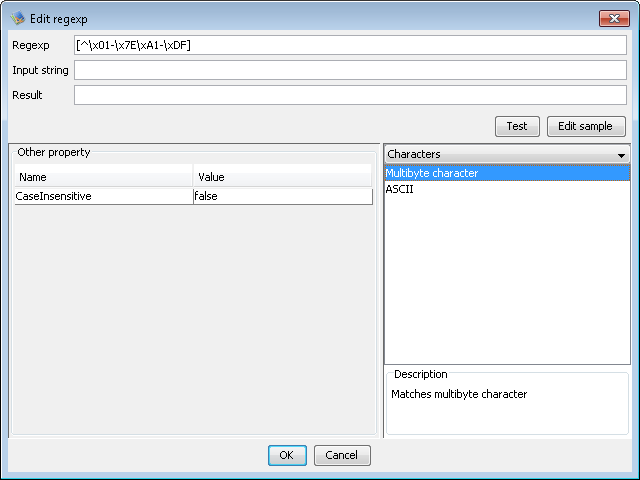

Regular Expression Dialog

When double-click the regular expression functions, the Regular Expression Dialog is displayed. You can configure the properties and test the regular expressions.

　

　

Fields

Regexp	Input regular expression property. When the item is selected by listing the lower right of the screen, the corresponding regular expression is set.
Input string	Input the string to be used by test.
Result	The result of test is displayed.
Other property	Properties of editing function is displayed except for regular expression.
Selection list	If selects the category, regular expressions are displayed below. The corresponding regular expression is reflected in the input column when the item is selected from the list, and the explanation is displayed under the screen.
Test button	Test the current configurations with Input string.
Edit sample button	Edits the regular expression list of Selection List.

　

Regular expression list is simple CSV file and it is freely customizable.

　

Specification of regular expression sample data

• The file path is DESIGNER_HOME/resources/Regexp/Regexp.txt
• Comment the line started with "#"
• Column 1 - Categor
• Column 2 - Label displayed in the list
• Column 3 - Regular expression
• Column 4 - Description(Line feed is "\n")

Example

Example 1 : If Global=false, only the first matching "abc" is replaced. If Global=true, each match is replaced.

		Property		Output
Input1	abc def hij abc	RegExp	abc	ZZZ def hij abc
		Replace	ZZZ
		CaseInsensitive	true
		Global	false

Example 2 : The "$1" in the Replace property is a macro that refers to the string that matches the regular expression located in the first set of brackets in the RegExp property.

		Property		Output
Input1	(1,2) (2,3) (3,4)	RegExp	\(([0-9]),([0-9])\)	(2,1) (3,2) (4,3)
		Replace	($2,$1)
		CaseInsensitive	true
		Global	true
